Six Sigma has emerged as a powerful approach for organizations seeking to enhance operational efficiency, reduce defects, and drive customer satisfaction.

At the heart of Six Sigma lies a structured framework known as DMAIC (Define, Measure, Analyze, Improve, Control), which guides practitioners through a systematic problem-solving process.

Within this framework, the “Define” phase plays a pivotal role in establishing a solid foundation for the project. It is during this stage that one of the most valuable tools – the SIPOC (Suppliers, Inputs, Process, Outputs, Customers) diagram – comes into play.

The SIPOC diagram is a high-level process map that provides a comprehensive overview of a process, its key components, and the stakeholders involved.

By visually representing the suppliers, inputs, process steps, outputs, and customers, this tool offers a structured way to understand the current state of a process, identify potential pain points, and align project goals with customer requirements.

This powerful tool not only fosters a shared understanding among project teams but also lays the groundwork for subsequent phases of the DMAIC methodology, such as Measure, Analyze, Improve, and Control.

What is a SIPOC Diagram?

At its core, a SIPOC diagram is a visual representation of a process that captures the key elements involved from start to finish. The acronym SIPOC stands for Suppliers, Inputs, Process, Outputs, and Customers, which are the essential components depicted in this powerful tool.

A SIPOC diagram is a high-level process map that outlines the following:

• Suppliers: The individuals, departments, or entities that provide the necessary inputs for the process.
• Inputs: The resources, materials, or information required for the process to function properly.
• Process: The series of steps or activities that transform the inputs into outputs.
• Outputs: The end products, services, or deliverables generated by the process.
• Customers: The recipients or beneficiaries of the outputs, whether internal or external to the organization

Role of SIPOC in Six Sigma DMAIC methodology

Within the Six Sigma framework, the SIPOC diagram plays a crucial role in the Define phase of the DMAIC (Define, Measure, Analyze, Improve, Control) methodology.

By creating a SIPOC diagram, project teams can clearly articulate the scope of the process under investigation, identify key stakeholders, and align project goals with customer requirements from the outset.

SIPOC in Six Sigma as a process mapping tool

The SIPOC diagram is a type of process map that provides a high-level overview of a process. Unlike detailed process maps that delve into granular steps and decision points, the SIPOC diagram offers a simplified, yet comprehensive, representation of the process flow.

This makes it an ideal tool for quickly communicating the essence of a process to stakeholders and facilitating a shared understanding among team members.

A high-level overview of a process

By capturing the suppliers, inputs, process steps, outputs, and customers in a single diagram, the SIPOC provides a holistic view of the process under consideration.

This high-level perspective allows teams to identify potential bottlenecks, inefficiencies, or areas for improvement without getting bogged down in excessive detail. The SIPOC diagram serves as a starting point for further analysis and process optimization efforts.

Components of a SIPOC Diagram

A SIPOC diagram consists of five key components that collectively provide a comprehensive overview of a process. Understanding each of these components is essential to effectively leveraging the power of this tool in Six Sigma projects.

Let’s explore each component in detail:

Suppliers

Suppliers are the individuals, departments, or external entities that provide the necessary inputs for the process under consideration. Accurately identifying suppliers is crucial, as they play a vital role in determining the quality and availability of the inputs required for the process to function effectively.

Identifying suppliers: When creating a SIPOC diagram, it is important to carefully identify all relevant suppliers, both internal and external to the organization.

Internal suppliers may include departments or teams within the same organization, while external suppliers could be vendors, contractors, or third-party providers.

External and internal suppliers: External suppliers are typically easier to identify, as they are separate entities that provide raw materials, components, or services to the organization.

Internal suppliers, on the other hand, may be less obvious but equally important. These could include departments that provide information, approvals, or resources necessary for the process to proceed.

Importance of suppliers in the process: Recognizing the importance of suppliers is crucial because their performance and reliability can significantly impact the quality of the inputs and, consequently, the outputs of the process.

By clearly identifying suppliers in the SIPOC diagram, teams can better understand potential risks, dependencies, and areas for improvement in supplier relationships and management.

Inputs

Inputs are the materials, resources, or information required for the process to function properly. Accurately identifying and understanding the inputs is crucial, as they directly influence the quality and performance of the process outputs.

Key inputs for the process: When mapping a process using a SIPOC diagram, it is essential to identify the key inputs that are critical to the successful execution of the process. These inputs can vary depending on the nature of the process, but they typically fall into three broad categories:

• Materials: This includes raw materials, components, or physical resources required for the process, such as raw materials for manufacturing, ingredients for food production, or office supplies for administrative processes.
• Resources: These are the human, financial, or technological resources needed to carry out the process effectively. Examples include skilled labor, equipment, software, or financial capital.
• Information: Processes often rely on accurate and timely information, such as data, specifications, instructions, or requirements, to ensure proper execution and decision-making.

Impact of input variation on outputs: It is crucial to recognize that variations in the quality, quantity, or timing of inputs can have a direct impact on the outputs of the process.

For example, if raw materials do not meet specified quality standards, the resulting product may be defective or subpar. Similarly, if critical information is incomplete or inaccurate, the process may produce incorrect or unsuitable outputs, leading to customer dissatisfaction or rework.

By clearly identifying and understanding the inputs in the SIPOC diagram, teams can pinpoint potential sources of variation or defects, enabling proactive measures to control and improve input quality.

This, in turn, can lead to more consistent and higher-quality outputs, aligning with the Six Sigma principles of reducing variation and enhancing process performance.

Process

The “Process” component of the SIPOC diagram is the heart of the tool, depicting the series of steps or activities that transform inputs into outputs. Accurately mapping the process steps is crucial for understanding the current state of the process and identifying potential areas for improvement.

Mapping the process steps: When creating a SIPOC diagram, it is essential to map the process steps logically and sequentially.

This involves breaking down the process into its constituent activities or tasks, ensuring that no critical step is overlooked.

The level of detail captured in the process steps should strike a balance between providing a high-level overview and capturing the essence of the process flow.

High-level process flow: One of the key advantages of the SIPOC diagram is its ability to provide a high-level process flow.

Unlike detailed process maps that delve into granular activities and decision points, the SIPOC diagram focuses on the major steps that drive the transformation of inputs into outputs.

This high-level perspective allows stakeholders to quickly grasp the overall process and identify potential bottlenecks or areas for optimization.

Limiting process steps: While there is no strict rule on the number of process steps to include in a SIPOC diagram, it is generally recommended to limit the steps to a range of 5 to 7.

This guideline strikes a balance between capturing the essential elements of the process and maintaining simplicity and clarity in the diagram.

Exceeding 7 steps may result in an overly detailed and cluttered representation, defeating the purpose of a high-level overview.

By mapping the process steps effectively in the SIPOC diagram, teams can visualize the flow of activities, identify potential inefficiencies or redundancies, and determine opportunities for streamlining or improving the process.

This lays the foundation for subsequent phases of the Six Sigma DMAIC methodology, where more detailed process analysis and improvement efforts can be undertaken.

Outputs

The outputs component of the SIPOC diagram represents the end products, services, or deliverables generated by the process under consideration. Clearly defining and understanding the outputs is crucial for ensuring that the process aligns with customer requirements and meets their expectations.

End products or services: Outputs can take various forms, depending on the nature of the process. In a manufacturing setting, the outputs may be physical products, such as automobiles, electronic devices, or consumer goods.

In a service-oriented industry, the outputs could be intangible services, such as financial advice, healthcare services, or consulting solutions.

Outputs based on customer requirements: One of the fundamental principles of Six Sigma is a customer-centric approach. As such, the outputs of a process should be directly linked to and driven by customer requirements.

By clearly identifying the customers in the SIPOC diagram and understanding their needs and expectations, teams can ensure that the outputs are designed and delivered to meet or exceed those requirements.

Neutral and measurable outputs: When defining outputs in a SIPOC diagram, it is essential to use neutral language and focus on measurable characteristics.

Outputs should be described objectively, avoiding subjective or value-laden terms. Additionally, outputs should be defined in a way that allows for quantitative measurement and analysis, enabling teams to track and improve performance over time.

By accurately capturing the outputs in the SIPOC diagram, teams can establish a clear target for their process improvement efforts.

This understanding enables them to identify potential gaps between the current outputs and customer requirements, prioritize areas for improvement, and implement changes that directly impact customer satisfaction and process performance.

Customers

The “Customers” component of the SIPOC diagram represents the individuals or entities that receive and benefit from the outputs of the process. Accurately identifying and understanding customers is crucial for ensuring that the process delivers value and meets their expectations.

Internal and external customers: Customers can be classified as either internal or external to the organization. Internal customers are individuals or departments within the same organization that receive the outputs of the process for further processing or use.

External customers, on the other hand, are those outside the organization who are the ultimate beneficiaries of the process outputs, such as end-users, clients, or consumers.

Customer requirements: One of the fundamental principles of Six Sigma is a customer-centric approach, where processes are designed and optimized to meet or exceed customer requirements.

In the SIPOC diagram, it is essential to clearly define and understand the requirements of both internal and external customers. These requirements may include specifications, quality standards, delivery timelines, or specific functional or aesthetic attributes that the outputs must possess.

Voice of the Customer (VOC): The concept of “Voice of the Customer” (VOC) is a critical aspect of Six Sigma and plays a significant role in the SIPOC diagram.

VOC refers to the process of capturing and understanding the needs, expectations, and preferences of customers through various data collection methods, such as surveys, interviews, or focus groups.

Incorporating VOC into the SIPOC diagram ensures that the process outputs are aligned with customer requirements and expectations.

By accurately identifying and understanding customers in the SIPOC diagram, teams can prioritize their process improvement efforts to deliver outputs that meet or exceed customer requirements.

This customer-centric approach is at the core of Six Sigma, as it drives continuous improvement and enhances customer satisfaction, ultimately leading to increased competitiveness and business success.

Benefits of Using SIPOC in Six Sigma Projects

The SIPOC diagram is a powerful tool that offers numerous benefits to Six Sigma projects, contributing to the overall success of process improvement initiatives. By leveraging the SIPOC framework, organizations can unlock a range of advantages that align with the core principles of Six Sigma.

Identifying process inefficiencies: One of the primary benefits of using a SIPOC diagram is its ability to highlight potential inefficiencies within a process.

By visually mapping the flow of inputs, process steps, and outputs, teams can quickly identify bottlenecks, redundancies, or non-value-added activities.

This visibility enables them to pinpoint areas where resources may be underutilized or where unnecessary waste is occurring, paving the way for targeted process optimization efforts.

Improving communication and collaboration: The SIPOC diagram serves as a powerful communication tool that facilitates collaboration among cross-functional teams and stakeholders.

By providing a shared understanding of the process, its components, and the relationships between them, the SIPOC diagram promotes open dialogue, fosters alignment, and ensures that everyone is working towards a common goal.

This collaborative approach is essential for driving successful process improvement initiatives within the Six Sigma framework.

Reducing defects and variations: A key objective of Six Sigma is to reduce defects and minimize variations in processes and outputs.

The SIPOC diagram plays a crucial role in achieving this goal by enabling teams to identify potential sources of variation, such as inconsistent inputs or process steps that lack control.

By understanding these sources of variation, teams can implement targeted measures to improve process control, leading to more consistent and higher-quality outputs.

Aligning project scope and goals: At the outset of a Six Sigma project, it is essential to clearly define the scope and goals to ensure a focused and effective improvement effort.

The SIPOC diagram serves as a valuable tool for aligning the project scope and goals with customer requirements and organizational objectives.

By mapping the process from end to end, teams can identify the critical touch points that directly impact customer satisfaction and prioritize improvement efforts accordingly.

Overall, the SIPOC diagram is a versatile and powerful tool that supports the core principles of Six Sigma, enabling organizations to streamline processes, enhance quality, and drive customer satisfaction.

By leveraging its benefits, teams can lay a solid foundation for successful process improvement initiatives and achieve sustainable business excellence.

How to Create a SIPOC Diagram

Creating a SIPOC diagram may seem straightforward, but ensuring its effectiveness requires following a structured approach and adhering to best practices.

Let’s explore the steps to complete a SIPOC diagram, provide valuable tips and best practices, highlight common mistakes to avoid, and introduce useful templates and tools to streamline the process.

Steps to complete a SIPOC diagram

1. Define the process: Clearly identify the process you want to map and understand its boundaries.
2. Identify the outputs: Determine the end products, services, or deliverables generated by the process.
3. Identify the customers: Identify both internal and external customers who receive and benefit from the outputs.
4. Map the process steps: Break down the process into its major steps, typically ranging from 5 to 7 high-level activities.
5. Identify the inputs: List the materials, resources, or information required for the process to function properly.
6. Identify the suppliers: Determine the internal or external entities that provide the necessary inputs.
7. Validate and refine: Review the SIPOC diagram with relevant stakeholders, make necessary adjustments, and ensure alignment.

Best practices and tips

• Involve cross-functional teams and stakeholders: Engage representatives from various departments or functions to capture diverse perspectives and ensure a comprehensive understanding of the process.
• Use clear and concise language: Avoid jargon or overly technical terms to ensure that the SIPOC diagram is easily understandable by all stakeholders.
• Focus on the high-level flow: Resist the temptation to delve into excessive detail, as the SIPOC diagram is meant to provide a high-level overview of the process.
• Validate with data and observations: Wherever possible, support the SIPOC components with data, measurements, or direct observations to ensure accuracy and objectivity.

Common mistakes to avoid

• Overlooking key stakeholders: Failing to involve relevant stakeholders can lead to an incomplete or inaccurate representation of the process.
• Confusing inputs and outputs: Ensure a clear distinction between inputs and outputs to maintain the integrity of the SIPOC diagram.
• Neglecting customer requirements: Omitting customer requirements can result in misaligned processes and outputs that fail to meet customer expectations.
• Excessive detail: Including too many process steps or unnecessary details can clutter the SIPOC diagram and undermine its purpose as a high-level process map.

SIPOC diagram templates and tools

To streamline the creation of SIPOC diagrams, various templates, and tools are available, including:

• Microsoft Excel or Google Sheets templates: These spreadsheet-based templates provide a structured format for capturing SIPOC components.
• Diagramming software: Tools like Microsoft Visio, Lucidchart, or draw.io offer user-friendly interfaces for creating visual SIPOC diagrams.
• Collaborative platforms: Online platforms like Miro or Mural facilitate real-time collaboration and sharing of SIPOC diagrams among team members.

By following these steps, adhering to best practices, avoiding common pitfalls, and leveraging the right tools, teams can effectively create SIPOC diagrams that serve as a solid foundation for successful Six Sigma projects and drive continuous process improvement.

SIPOC in the Six Sigma DMAIC Methodology

The SIPOC diagram plays a crucial role within the Six Sigma DMAIC (Define, Measure, Analyze, Improve, Control) methodology, serving as a foundational tool in the Define phase and paving the way for subsequent process improvement activities.

Role of SIPOC in the Define phase: The Define phase of the DMAIC methodology is dedicated to clearly understanding the problem or opportunity at hand, establishing project goals, and defining the scope of the improvement effort.

The SIPOC diagram is a fundamental tool used in this phase to provide a high-level overview of the process, its inputs, outputs, customers, and stakeholders.

By creating a SIPOC diagram, teams can ensure that they have a shared understanding of the process, identify potential areas of concern, and align the project scope with customer requirements and organizational objectives.

SIPOC as a precursor to process mapping: While the SIPOC diagram provides a high-level process map, it serves as a precursor to more detailed process mapping activities that occur in later phases of the DMAIC methodology.

The SIPOC diagram lays the groundwork for subsequent tools and techniques, such as process flowcharts, value stream maps, or swim lane diagrams, which provide a more granular view of the process steps, decision points, and interactions between different parties involved.

SIPOC and other Six Sigma tools: The SIPOC diagram is often used in conjunction with other powerful Six Sigma tools to facilitate a comprehensive root cause analysis and drive process improvement. Some of the key tools that complement the SIPOC diagram include:

• Input/Output Map Building upon the inputs and outputs identified in the SIPOC diagram, the Input/Output Map provides a detailed analysis of the relationships between process inputs and outputs, enabling teams to pinpoint potential sources of variation and defects.
• Cause and Effect (C&E) Matrix: The C&E Matrix is a structured approach to identifying potential root causes of problems or defects by examining the relationships between inputs and outputs identified in the SIPOC diagram.
• Failure Mode and Effects Analysis (FMEA): FMEA is a risk assessment tool that helps teams identify potential failure modes, their causes, and effects, as well as prioritize risk mitigation efforts. The SIPOC diagram provides a solid foundation for conducting an FMEA by clearly defining the process, inputs, and outputs.

By integrating the SIPOC diagram with these complementary Six Sigma tools, teams can comprehensively analyze the process, identify the root causes of problems or defects, and develop targeted improvement strategies.

The SIPOC diagram serves as the starting point, providing the essential context and framework for applying these advanced analytical techniques within the Six Sigma DMAIC methodology.

Examples and Case Studies of SIPOC in Six Sigma

The SIPOC diagram has proven its effectiveness across various industries and sectors, helping organizations streamline processes, improve quality, and enhance customer satisfaction.

Let’s explore some real-world examples and case studies to illustrate the practical applications of SIPOC in different contexts.

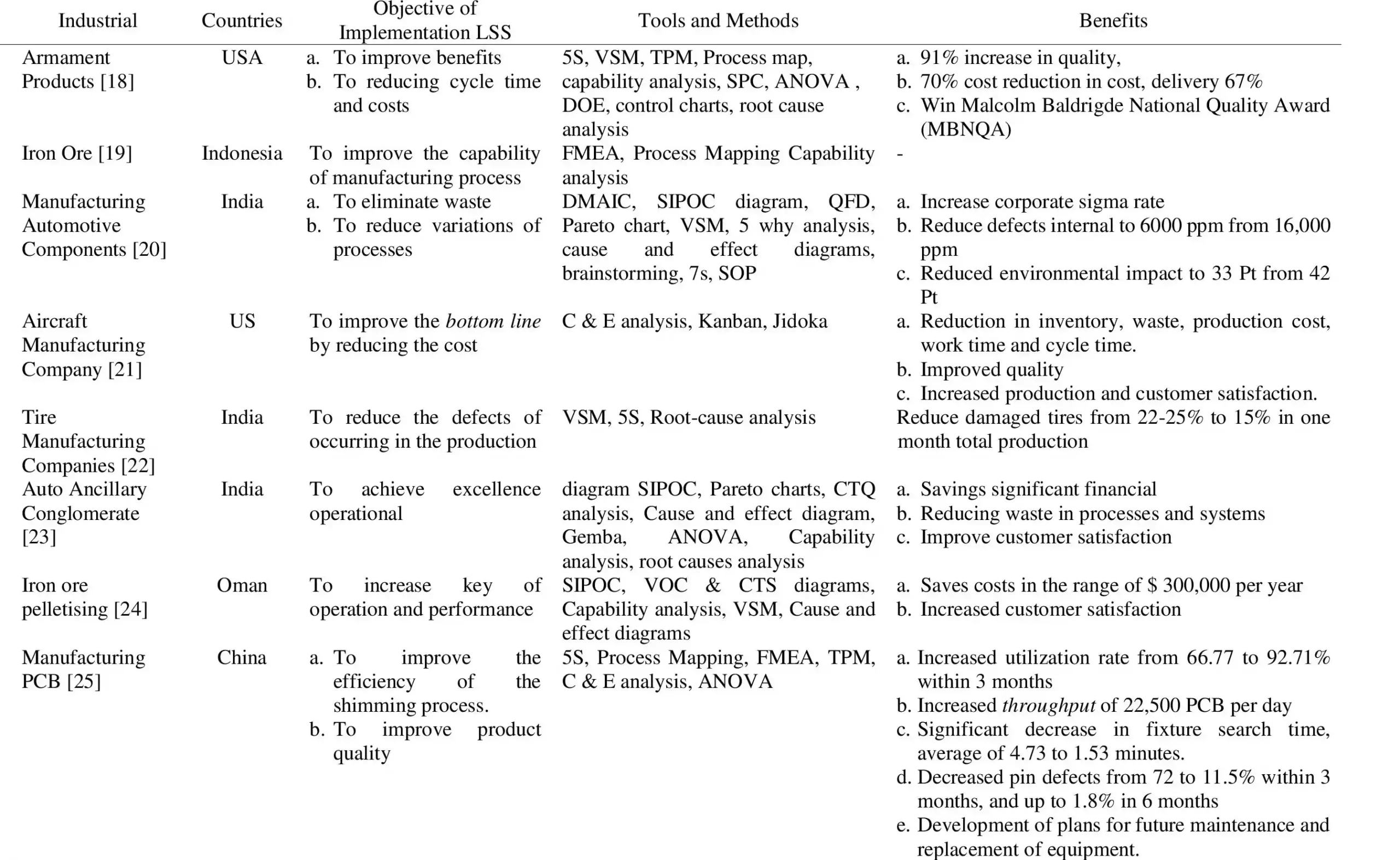

SIPOC in manufacturing processes

• Automotive manufacturing: A leading automotive manufacturer utilized SIPOC to map their vehicle assembly process, identifying suppliers of critical components, process steps, and quality requirements for the final product.

  By leveraging the SIPOC diagram, they were able to pinpoint bottlenecks in the assembly line, optimize resource allocation, and reduce defects, resulting in improved production efficiency and customer satisfaction.

• Electronics manufacturing: An electronics company faced challenges with high defect rates and inconsistent product quality. By creating a SIPOC diagram for their circuit board assembly process, they identified key inputs, such as component quality and supplier performance, that were contributing to the issues.

  This insight enabled them to implement targeted supplier management strategies and enhance process control measures, leading to a significant reduction in defects and improved product reliability.

SIPOC in service industries

A study found that Six Sigma resulted in a 25% reduction in cycle time and a 20% improvement in customer satisfaction in service organizations.

• Financial services: A major bank utilized SIPOC to map their loan application process, identifying customers, their requirements, and the various inputs and steps involved. This helped them streamline the application process, reduce turnaround times, and enhance customer satisfaction.

  Additionally, the SIPOC diagram facilitated cross-functional collaboration, ensuring smooth handoffs between departments involved in the loan application process.

• Hospitality industry: A luxury hotel chain employed SIPOC to analyze their guest check-in and check-out processes.

  By understanding the inputs, such as reservation data and room availability, as well as the expectations of guests, they were able to optimize their processes, leading to improved guest experiences and higher satisfaction ratings.

SIPOC in the HealthCare and Education sectors

A study by the Institute for Healthcare Improvement (IHI) found that Six Sigma led to a 30% reduction in undetected dispensing errors and a 20% decrease in hospital-acquired infections in healthcare settings.

• Healthcare: A hospital utilized SIPOC to map its patient admission process, identifying key inputs like medical records, insurance information, and staffing resources.

  By understanding the process flow and potential bottlenecks, they were able to streamline the admission process, reducing wait times and improving patient satisfaction.

• Education: A university employed SIPOC to analyze their student enrollment process, from initial inquiries to course registration and fee payments.

  By mapping the process and identifying stakeholders, such as prospective students, admissions staff, and academic advisors, they were able to optimize the enrollment experience, improving communication and reducing administrative burdens.

These real-world examples demonstrate the versatility and effectiveness of the SIPOC diagram in driving process improvement initiatives across diverse industries and sectors.

By providing a structured approach to understanding processes, identifying stakeholders, and aligning efforts with customer requirements, the SIPOC diagram has become an indispensable tool in the pursuit of operational excellence and customer satisfaction.

Advanced SIPOC Techniques

While the traditional SIPOC diagram is a powerful tool for process improvement, some advanced techniques and extensions can further enhance its effectiveness, particularly in complex scenarios or when integrated with other methodologies.

Extending SIPOC with additional elements: In certain cases, organizations may find it beneficial to extend the SIPOC diagram by incorporating additional elements beyond the core components of Suppliers, Inputs, Process, Outputs, and Customers.

These extensions can provide further insights and facilitate a more comprehensive analysis of the process. Some common extensions include:

• Requirements: Adding a dedicated section for customer requirements can help ensure that the process outputs are aligned with specific customer needs and expectations.
• Metrics: Incorporating relevant metrics or key performance indicators (KPIs) into the SIPOC diagram can help teams track and measure the effectiveness of the process, enabling data-driven decision-making.
• Controls: Identifying the controls or mechanisms in place to monitor and regulate the process can provide insights into areas for improvement or potential risk mitigation strategies.

SIPOC in Six Sigma for complex processes

While SIPOC diagrams are typically used for high-level process mapping, they can also be adapted to handle complex processes by employing hierarchical or multi-level representations.

In such cases, the main SIPOC diagram can provide an overview, while subsequent levels or sub-SIPOCs can drill down into specific sub-processes or activities, enabling a more detailed analysis and improvement efforts.

SIPOC in Six Sigma for multiple processes or projects

Organizations often need to manage and improve multiple processes simultaneously or tackle large-scale projects that span multiple departments or functions.

In such scenarios, creating a SIPOC diagram for each process or project can be time-consuming and challenging to integrate.

To address this, a comprehensive SIPOC approach can be employed, where a single, overarching SIPOC diagram is created to capture the interrelationships and dependencies between various processes or projects, facilitating a more holistic view and enabling cross-functional collaboration.

Integrating SIPOC with other process improvement methodologies

While SIPOC is a powerful tool within the Six Sigma framework, it can also be effectively integrated with other process improvement methodologies, such as Lean, Kaizen, or Business Process Management (BPM).

By combining SIPOC with techniques like value stream mapping, 5S, or process redesign, organizations can leverage the strengths of multiple methodologies to drive comprehensive process optimization and continuous improvement initiatives.

By embracing these advanced SIPOC techniques and integrating them with complementary methodologies, organizations can unlock new levels of process understanding, efficiency, and effectiveness.

Whether tackling complex processes, large-scale projects, or pursuing holistic improvement initiatives, these advanced approaches enable teams to harness the full potential of the SIPOC tool and drive sustainable process excellence across the organization.
